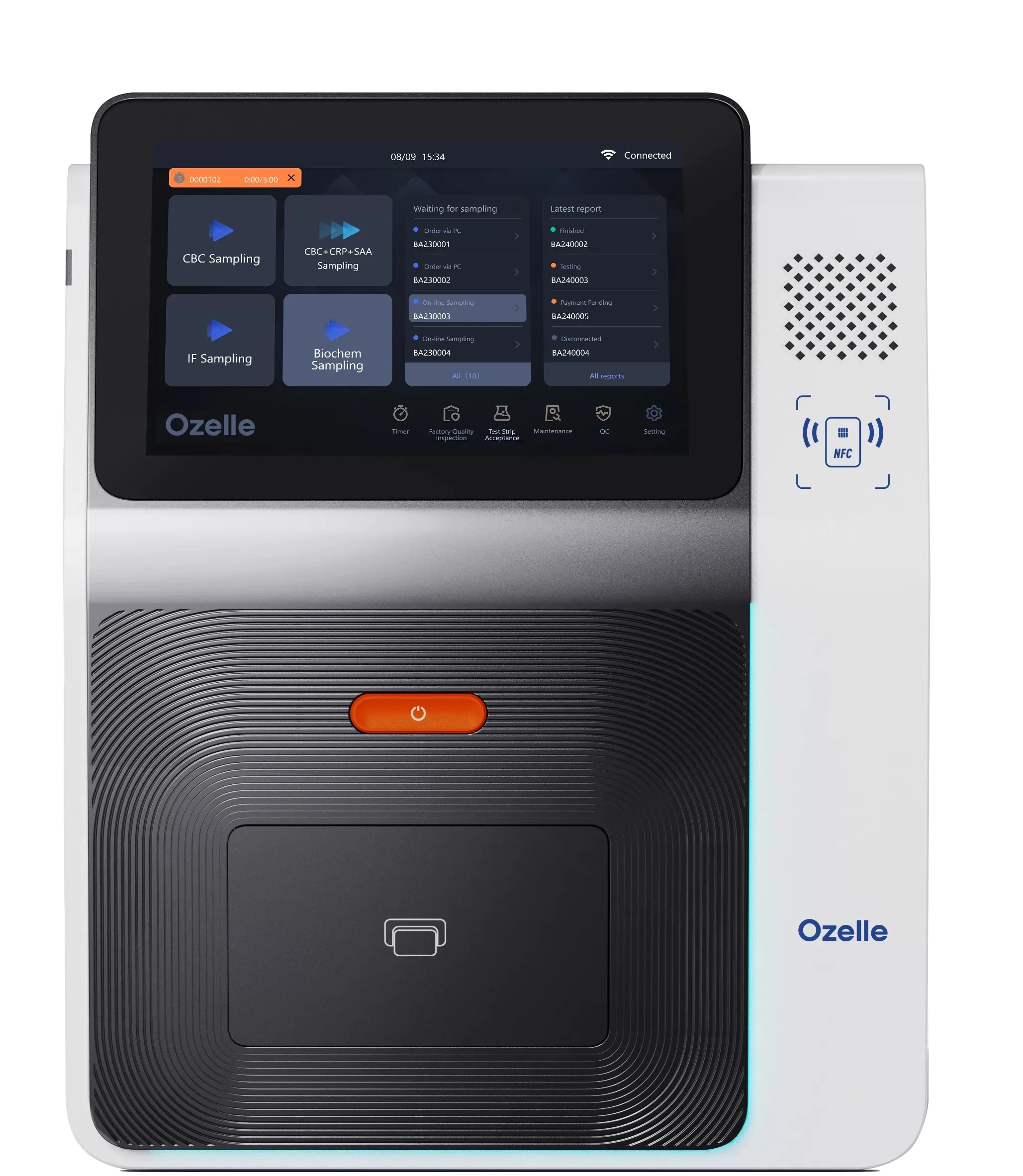

Multi-Functional Analyzer
EHBT-50
All in one, one means all
● All-in-One Testing: CBM, Immunoassay, Biochemistry

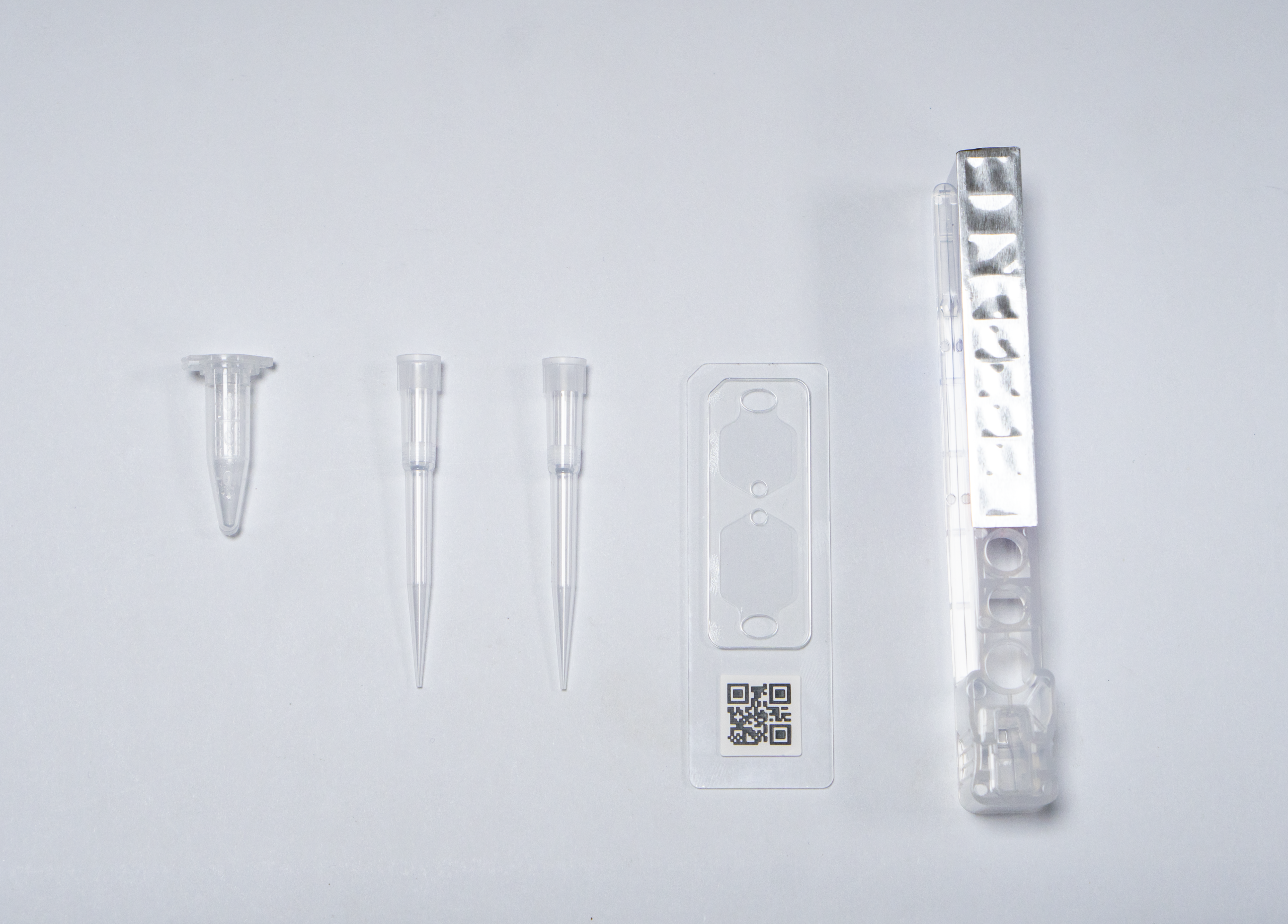

● Single-use Test Kits: Individually packed to prevent cross-contamination
● Maintenance-Free: No liquid pipelines, no cleaning solution required
● High-Precision Optics: SwissOptic® customized lens + multispectral imaging
● AI Algorithm: Trained on 40+ million samples, benchmarked against manual gold standard
● Fully Automated: From sample loading, staining, imaging, to report generation
All in one mini lab
Three Methodologies Integrated in One Machine
The combination of Cell Morphology Analysis, and FIA (fluorescence immunoassay) enriches the test items, and enable more accurate, convenient and economic tests with the unique advantage of each methodology.
The application of machine vision and Al recognition software realized more accurate classification, identification and counting of blood cells, greatly reduced the time used for microscope reexamination.
The dry-type design without fluidics system, keeps the instrument out of direct contact with sample, greatly reduced the operation cost and maintenance workload.
Three simple steps, easy to get started.
Step One
Collect samples
Step Two

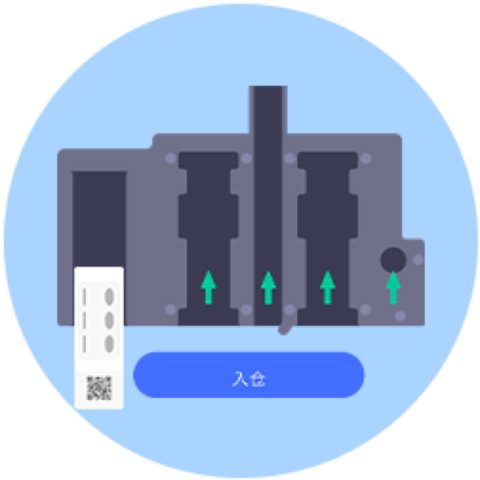

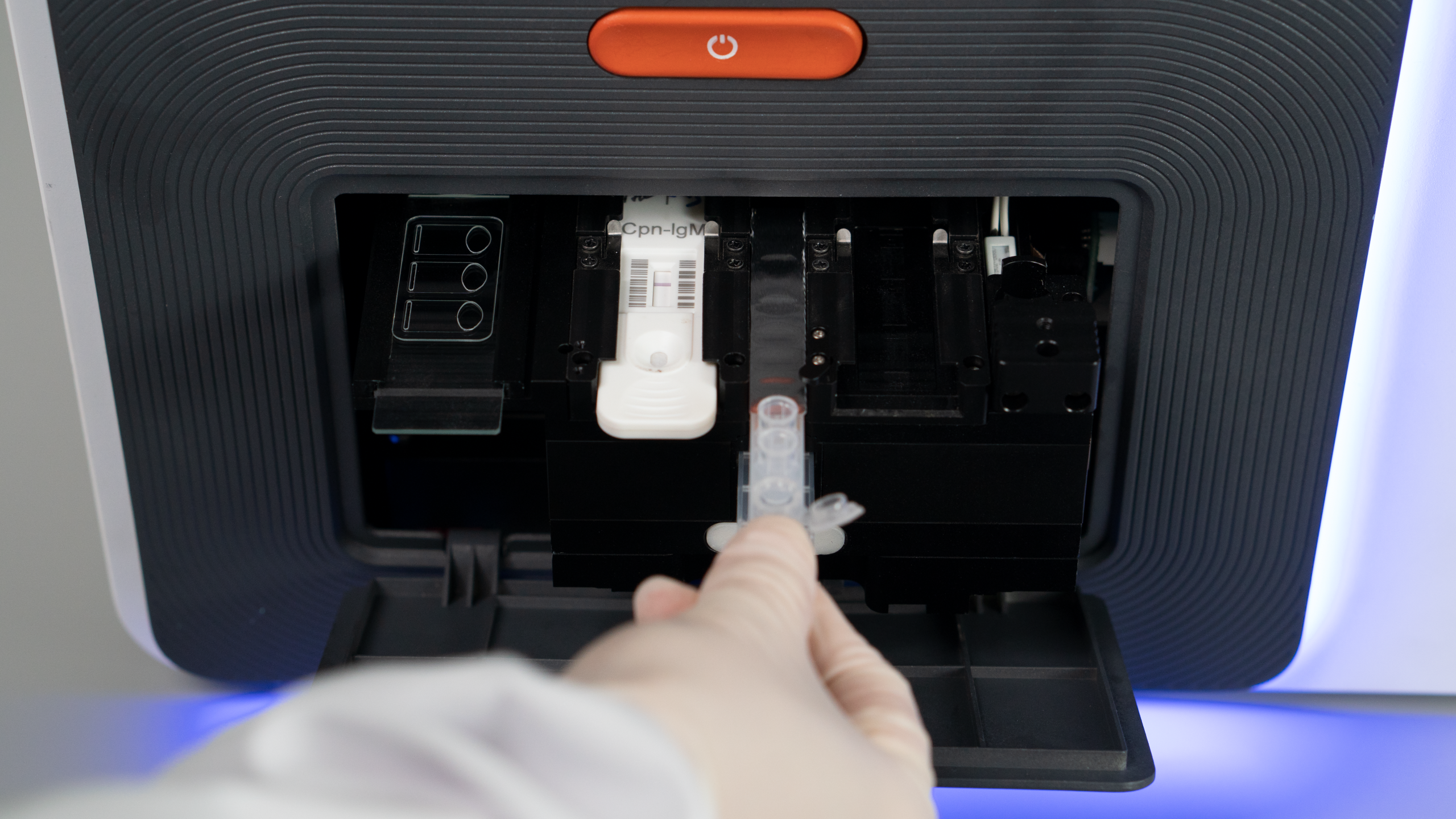

Put into the machine
Step Three

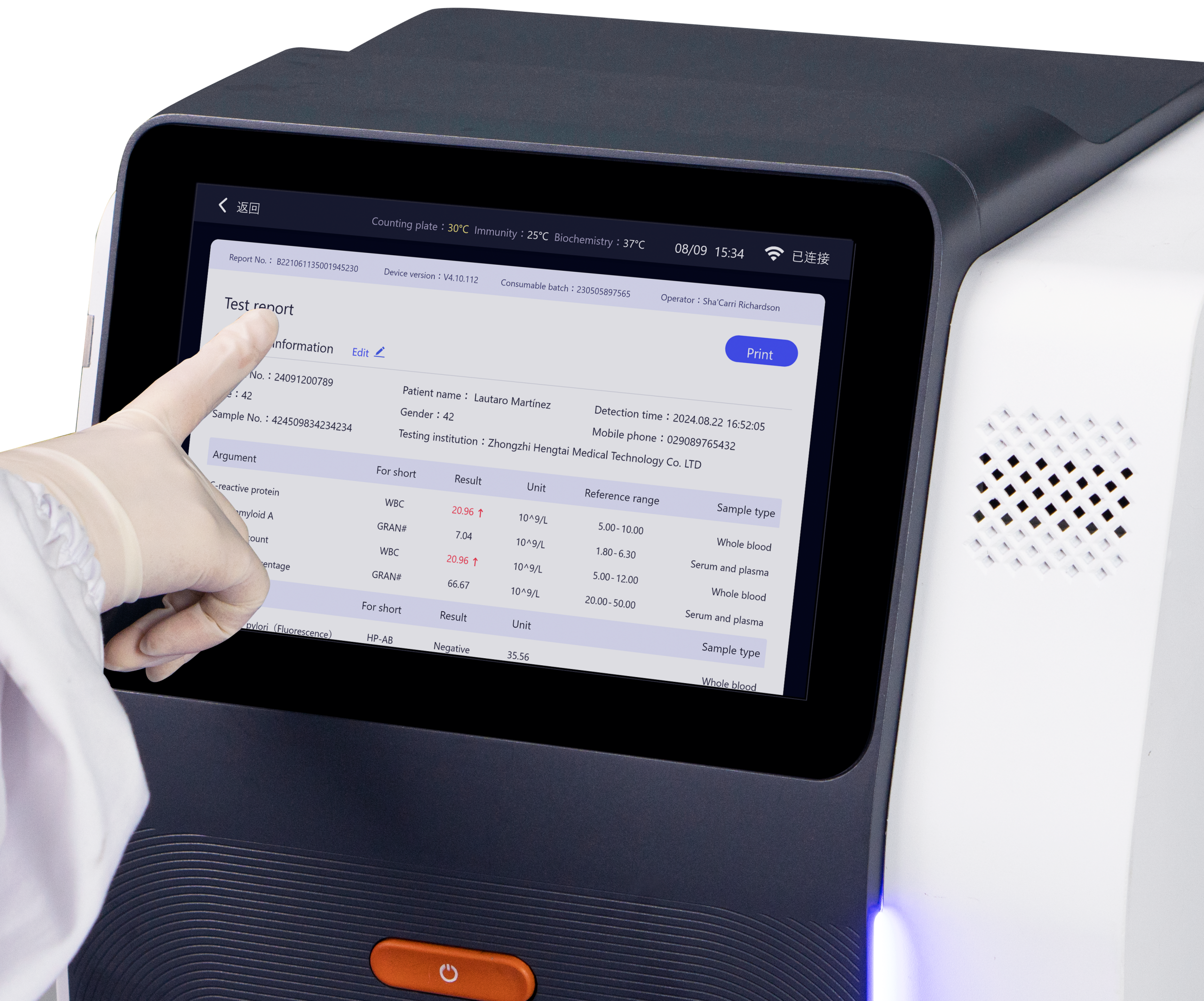

View the inspection report
Work Flow
Technical Specifications
Sample Type
Whole blood / Capillary / Serum/ Plasma
Parameters
CBM: 37 parameters including:WBC, NEU#, NST#, NSG#, NSH#, LYM#, MON#, EOS#, BAS#, ALY#, NEU%, NST%, NSG%, NSH%, LYM%, MON%, EOS%, BAS%, NLR, PLR; RBC, HGB, HCT, MCV, MCH, MCHC, RDW_CV, RDW_SD, RET#, RET%; PLT, MPV, PDW, PCT, PAg#, P_LCC, P_LCR
Immunoassay
CRP, CRP/SAA, IL-6, PCT, cTnI, NT-proBNP, CK-MB, HbA1c, T3, T4, TSH, D-Dimer, 25-OH-VD, hs-CRP* , SAA*, Myo*, cTnl/Myo/CK-MB*, cTnT*, FT3*, FT4*, mALB*, NGAL*, β2-MG*, Ferritin*, β-HCG*, LH*, FSH*, Prog*, PRL*, E2*, TESTO*, AMH*
Biochemistry
Blood Glucose & Lipid Test; Renal Test; Liver Test; Renal & Liver Test
Sample Volume
100 µL (30–100 µL used for testing)
Throughput
10 samples/hour
Principles
CBM: AI + Cell Morphology
HGB: Photoelectric colorimetry
Immunoassay: Fluorescence Immunochromatographic Analysis
Biochemical analysis: Dry Biochemical Analysis
Display
10.1-inch full-color touchscreen
Printer
Built-in thermal printer / optional external printer
Connectivity
LIS, LAN, USB, Type-C, SIM
QC Mode
Dry-type QC card
Calibration
Automatic calibration
Dimensions / Weight
400 × 350 × 450 mm / 15 kg
Power Supply
AC 100–240V, 50/60Hz
Noise Level
≤65 dBA
Service Life
8 years
